Cladding

• Stainless Steel Base Cladding

  .035 gauge/thickness, #8 polished (POL) or #4 brushed (VEL) finishes are standard. Stocked in 10' lengths. Available in other lengths by custom order.

  Click on image to enlarge


  S16-0073



  S16-0073W



  S16-0073F

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	A	B	Length	Base Section	Gauge	C
  S16-0073	Standard Cladding for PG/PL Base shoes				13/16"	4 1/8"	10'	A42-0073, A42-0072, A42-PL68, A42-PL80	.035"
  S16-0073W	Wrap Cladding for Fascia Mounted 0073				13/16"	4 1/8"	10'	A42-0073	.035"	2 3/4"
  S16-0075W	3 Sided Cladding for 0072				13/16"	4 1/8"	10'	A42-0072	.035"	2 1/2"
  S16-0073F	Flat Cladding for top of shoe only. Embedded and Fascia Mount applications.				13/16"		10'	A42-0072, A42-0073	.035"
  S16-0073L	Tall Cladding, for use with Gasket V50-0009				13/16"	4 1/4"	10'	A42-0072, A42-0073	.035"

• Stainless Steel Cladding End Caps

  .035 gauge/thickness, #8 polished (POL) or #4 brushed (VEL) finishes are standard.

  Click on image to enlarge


  S17-0073

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	Base Section	Gauge
  S17-0073	Cladding end cap for 0073 Base Shoe				A42-0073	20 or .035"
  S17-0072	Cladding End Cap for 0073 Base Shoe				A42-0072	20 or .035"

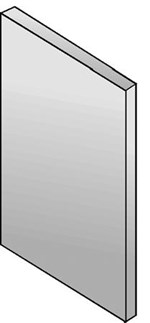

• Aluminum Base Cladding

  .050" gauge/thickness, available in mill finish (AEY), clear satin (VEL), and oil rubbed bronze (ORB). Stocked in 10' pieces. Additional lengths available by special order.

  Click on image to enlarge


  A16-0073



  A16-0073W



  A16-0073F

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	A	B	Length	Base Section	Gauge	C
  A16-0073	Standard Cladding for PG/PL Base Shoes				13/16"	4 1/8"	10'	A42-0073, A42-0072	.050"
  A16-0073W	Wrap Cladding for Fascia Mounted 0073				13/16"	4 1/8"	10'	A42-0073	.050"	2 3/4"
  A16-0075W	3 Sided Cladding for 0072				13/16"	4 1/8"	10'	A42-0072	.050"	2 1/2"
  A16-0073F	Flat Cladding for top of shoe only. Embedded and Fascia Mount applications.				13/16"		10'	A42-0072, A42-0073	.050"
  A16-0073L	Tall Cladding, for use with Gasket V50-0009				13/16"	4 1/4"	10'	A42-0072, A42-0073	.050"

• Aluminum Cladding End Caps

  Aluminum end caps are oversized for easy finishing. 050" gauge/thickness,
  available in mill finish (AEY), clear satin (VEL), and oil rubbed bronze (ORB).

  Click on image to enlarge


  A17-0073

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	Base Section	Gauge
  A17-0073	Cladding End Cap for 0073 Base Shoe				A42-0073	16
  A17-0072	Cladding End Cap for 0072 Base Shoe				A42-0072	16

• Plustar High Bond Cladding Tape

  Click on image to enlarge


  V50-0012

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	Length	Width	Height
  V50-0012	Adhesive tape to attach cladding to base shoe. Use 1 - 3 rows				108 ft. Roll	.75"	.0625"
