Cladding

• Stainless Steel Base Cladding

  .035 gauge/thickness, #8 polished or #4 brushed finishes are standard.

  Click on image to enlarge


  S16-0064



  S16-0076



  S16-0088



  S16-0090



  S16-0099

  Product Details

  Part #	A	B	Length	Base Section	CAD	Drawing	Cut Sheet
  S16-0064	7/16"	2 3/4"	10', 12'	A42-0064
  S16-0076	1/2"	4 1/8"	10', 12'	A42-0076
  S16-0088	.865"	3 1/2"	10', 12'	A42-0088
  S16-0090	1"	4 1/8"	10', 12'	A42-0090
  S16-0099	1"	4 1/4"	10', 12'	A42-0099

• Aluminum Base Cladding

  .050 gauge gauge/thickness, available in clear satin and dark bronze.

  Click on image to enlarge


  A16-0064



  A16-0076



  A16-0088



  A16-0090



  A16-0099

  Product Details

  Part #	A	B	Length	Base Section
  A16-0064	7/16"	2 3/4"	10', 12'	A42-0064
  A16-0076	1/2"	4 1/8"	10', 12'	A42-0076
  A16-0088	.865"	3 1/2"	10', 12'	A42-0088
  A16-0090	1"	4 1/8"	10', 12'	A42-0090
  A16-0099	1"	4 1/4"	10', 12'	A42-0099

• Stainless Steel Cladding End Caps

  0.35 gauge/thickness, #8 polished or #4 brushed finishes are standard.



  Click on image to enlarge

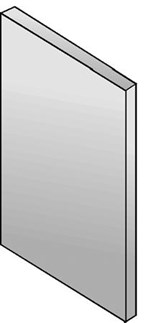

  CladdingEndCap1

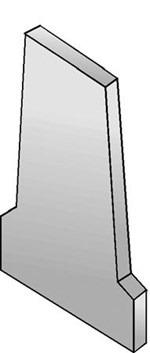

  CladdingEndCap2

  Product Details

  Part #	Base Section	CAD	Drawing	Cut Sheet
  S17-0064	A42-0064
  S17-0076	A42-0076
  S17-0088	A42-0088
  S17-0090	A42-0090
  S17-0099	A42-0099

• Aluminum Cladding End Caps

  Aluminum end caps are oversized for easy finishing.  050 gauge/thickness, available in mill finish, clear satin and dark bronze.

  Click on image to enlarge


  A17-0064



  A17-0076



  A17-0088



  A17-0090



  A17-0099

  Product Details

  Part #	Base Section
  A17-0064	A42-0064
  A17-0076	A42-0076
  A17-0088	A42-0088
  A17-0090	A42-0090
  A17-0099	A42-0099

• Plustar High Bond Cladding Tape

  Click on image to enlarge


  V50-0012

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	Length	Width	Height
  V50-0012	Adhesive tape to attach cladding to base shoe. Use 1 - 3 rows				108 ft. Roll	.75"	.0625"
