Aluminum Base Shoes

Base Section Hole Drilling Patterns (Optional)

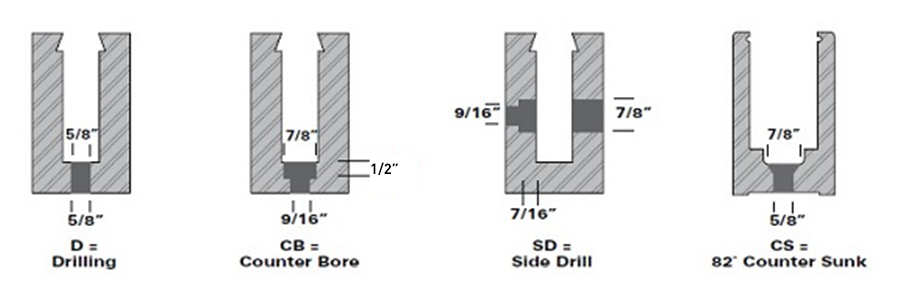

Custom hole drilling for aluminum base is available with four standard drilling patterns for 1/2” cap screws and bolts. For standard drilling patterns, drilling begins 6” from the end and continues every 12” on center.

• Wet Glaze Aluminum Base Shoes

  Extruded 6063-T5 or 6005-T5 Aluminum Bottom Rails in mill finish (other lengths available upon request). Codes for stocked drilling patterns can be found in the diagram above.

  Click on image to enlarge


  A42-0064AEY10



  A42-0076AEY20



  A42-0088AEY10CB



  A42-0090AEY10CB



  A42-0099AEY10CB

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	Length	Width	Height
  A42-0064AEY10	Undrilled Sneeze Guard Base Shoe				10'
  A42-0064AEY20	Undrilled Sneeze Guard Base Shoe				20'
  A42-0076AEY20	Tapered Base Shoe				20'
  A42-0088AEY10CB	Low Profile Wet Glaze Base Shoe				10'	2-1/4"	3-1/2"
  A42-0088AEY20CB	Low Profile Wet Glaze Base Shoe				20'	2-1/4"	3-1/2"
  A42-0090AEY10CB	Heavy Base Shoe for 1/2" Glass : Drilling, Counter Bore, Side Drill, Undrilled				10'	2-1/2"	4-1/8"
  A42-0090AEY20CB	Heavy Base Shoe for 1/2" Glass : Drilling, Counter Bore, Side Drill, Undrilled				20'	2-1/2"	4-1/8"
  A42-0099AEY10CB	Bottom Drilled Heavy Base Shoe for 3/4" Glass				10'
  A42-0099AEY10	Undrilled Heavy Base Shoe for 3/4" Glass				10'

  Product resources


  A42-0088 Low Profile Base Shoe Calculation Testing Report Wet Glaze Base Shoes

• Hollow Base Shoe

  Holes drilled 12" on center. Also available with holes drilled 6" on center. Available in Counter Bore, Straight Drill, and Side Drilled Counter Bore.

  Click on image to enlarge


  A42-0091AEY10CB

  Product Details

  Part #	Description	CAD	Drawing	Cut Sheet	Length	Width	Height
  A42-0091AEY10CB	Surface Mount Wet Glaze Base Shoe				10’	2-1/2"	4-1/8"
  A42-0091AEY20CB	Surface Mount Wet Glaze Base Shoe				20'	2-1/2"	4-1/8"
  A42-0091AEY10SD	Fascia Mount Wet Glaze Base Shoe				10'	2-1/2"	4-1/8"
  A42-0091AEY20SD	Fascia Mount Wet Glaze Base Shoe				20'	2-1/2"	4-1/8"

  Product resources


  A42-0091 Calculations
