Tranquility Shower System

The Tranquility Shower System includes all the items you'll need; the Shower Hardware Kit, Vinyl Seals and Sweep.



TRANQUILITY SHOWER SYSTEM
& VINYL SEAL PACKAGE

   Designed for 3/8" (C70-1100)  and 1/2" (C70-1150)  glass thickness, the Tranquility Glider System comes
with (01) the Tranquility Hardware Kit, (02) Vinyl Package, and (03) Installation Hardware.

Choose your finish, available in brushed steel, bright chrome, and oil rubbed bronze.



 01 • TRANQUILITY
HARDWARE KIT
Header Tube(1)
Rollers(4)
Tube to Wall Connector(2)
Tube to Fixed Glass Connector(2)
Stopper(2)
Floor Guide(1)

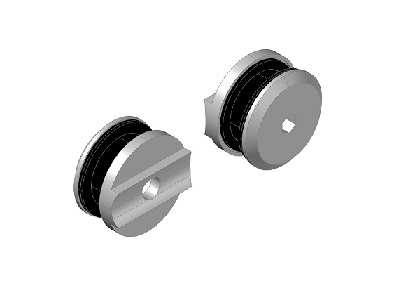

Tube To Fixed
Glass Connector
Product: C70-2100
Quantity: 2 pieces

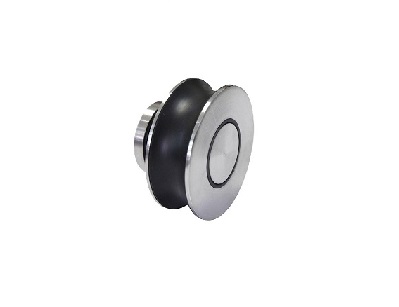

Roller

Product: C70-2120
Quantity: 4 pieces

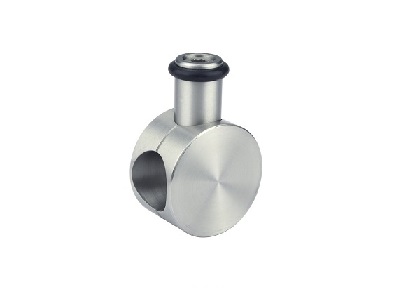

Roller
Stopper
Product: C70-2160
Quantity: 2 pieces

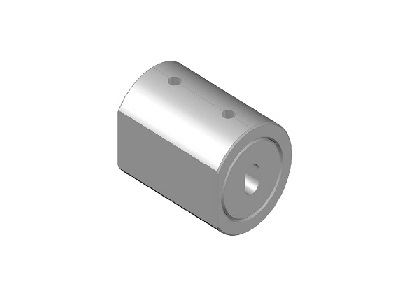

Tube to Wall
Connector
Product: C70-2101
Quantity: 2 pieces

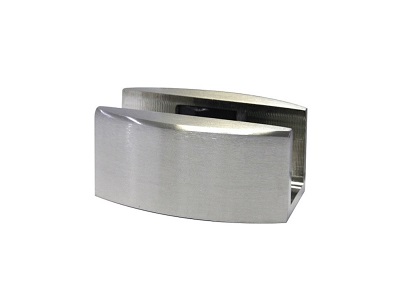

Floor
Guide
Product: C70-2162
Quantity: 1 piece

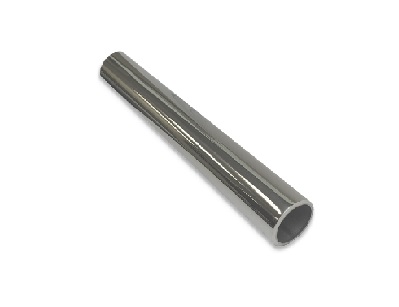

Tranquility
Tubing
Product: C70-2145
Quantity: 1 piece



 02 • VINYL PACKAGE
Drip Rail
Gliding Door Seal
Fixed Panel Seal

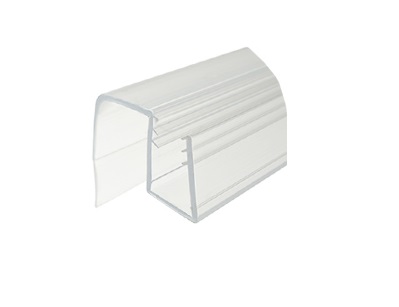

Drip Rail

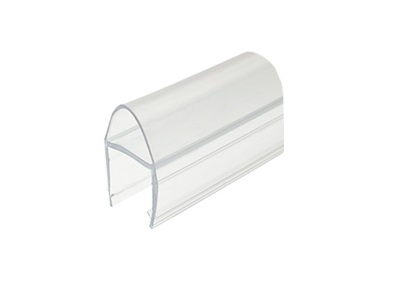

Gliding
Door Seal

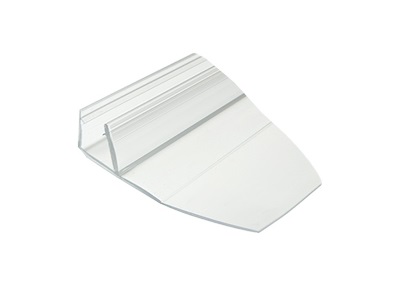

Fixed
Panel Seal

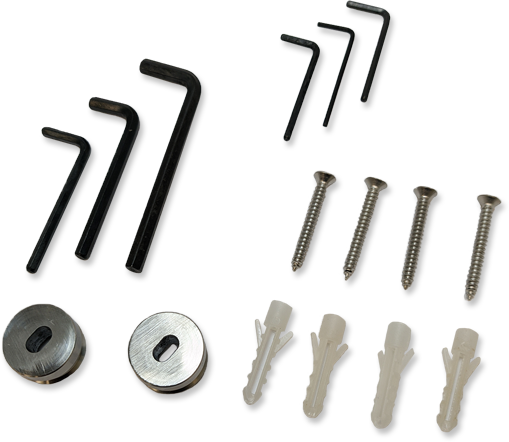

 03 • INSTALLATION
HARDWARE
Screws X 4
Allen Wrenches X 6







Product information

Features

• Top Quality, High End Materials and Appearance
• .098” Heavy Walled SS Tubing
• Heavy-Duty 2 3/4” Japanese Ball Bearing Wheels provide ultra-smooth operation
• All necessary hardware included
• All necessary sweeps and seals included
• 180lb weight capacity

Additional Information

• Accommodates 3/8” or 1/2” glass while maintaining 1-7/16" separation between the panels
• Fixed Panel can be mounted wall to wall or wall to side lite
• Available in Bright Chrome, Brushed Steel, and Oil Rubbed Bronze Finish
• 304 stainless steel with electroplated finish
• Roller Wheels allow slight vertical adjustment



Product resources



Data Sheets
Tranquility Shower Door System Data Sheet



Installation Instructions
Tranquility Assembly Instructions





• Tranquility Shower System for 3/8" Glass

  The Tranquility Shower System includes a Shower Hardware Kit, Tubing and Vinyl for  3/8" Glass.

  Product Details

  Part #	Description	Glass Size(T)
  C70-1100BRN	Brushed Steel	3/8"
  C70-1100BLY	Bright Chrome	3/8"
  C70-1100ORB	Oil Rubbed Bronze	3/8"

• Tranquility Shower System for 1/2" Glass

  The Tranquility Shower System for 1/2" Glass includes a Shower Hardware Kit, Tubing and Vinyl.

  Product Details

  Part #	Description	Glass Size(T)
  C70-1150BRN	Brushed Steel	1/2"
  C70-1150BLY	Bright Chrome	1/2"
  C70-1150ORB	Oil Rubbed Bronze	1/2"
